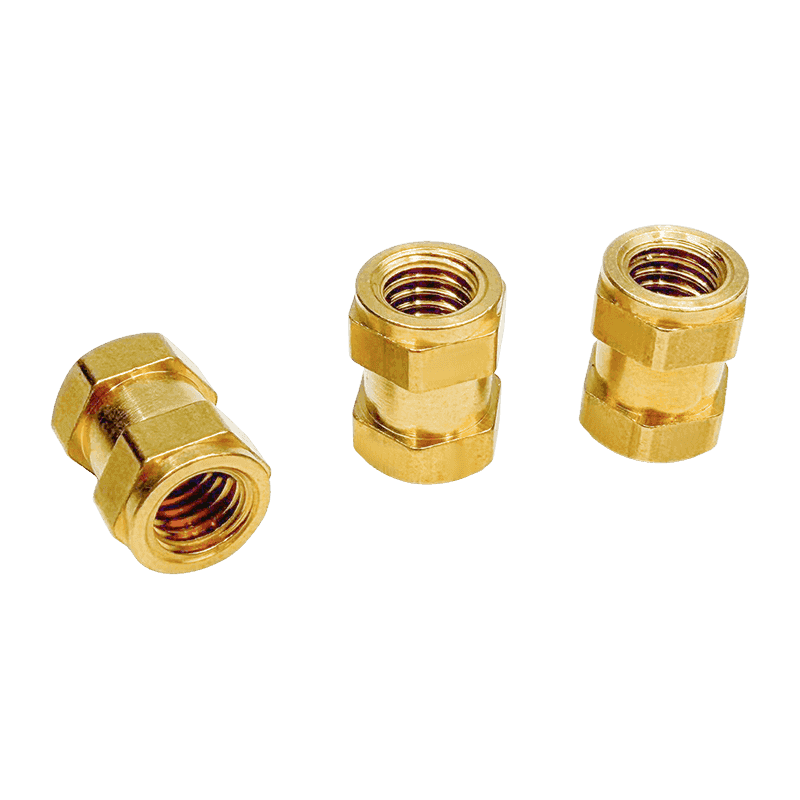

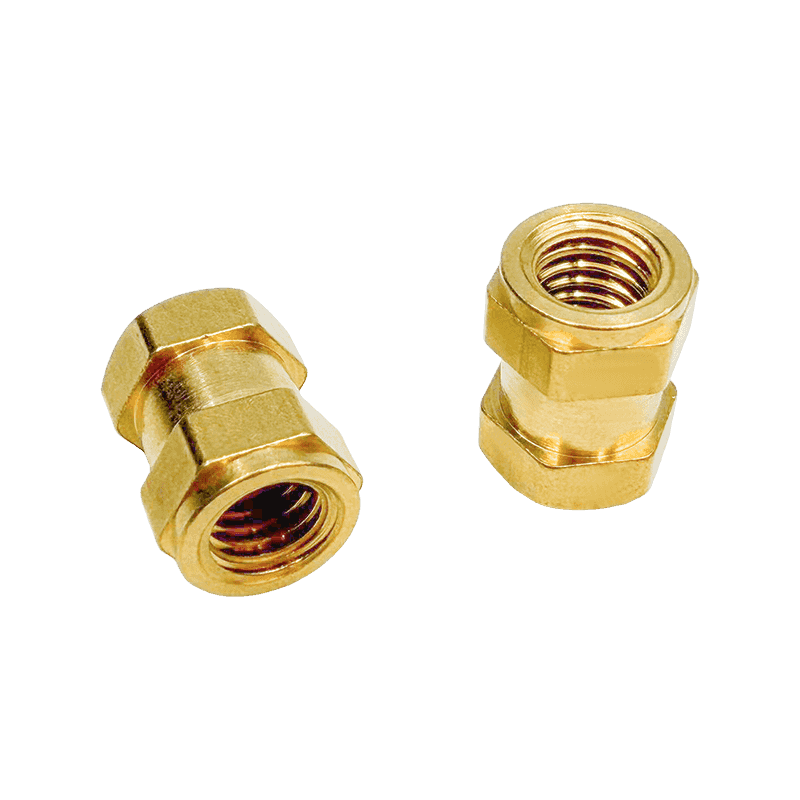

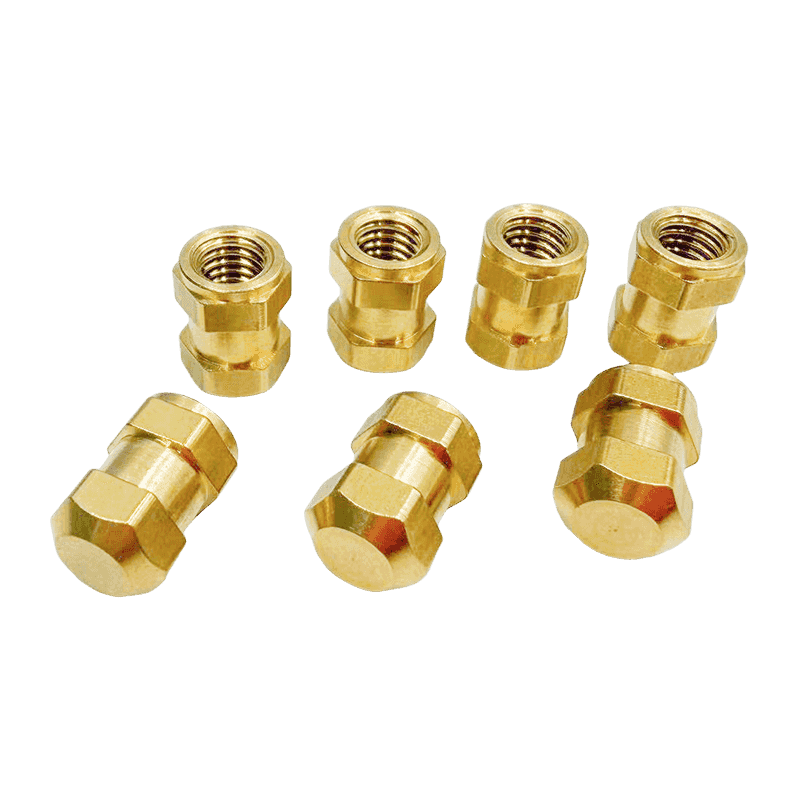

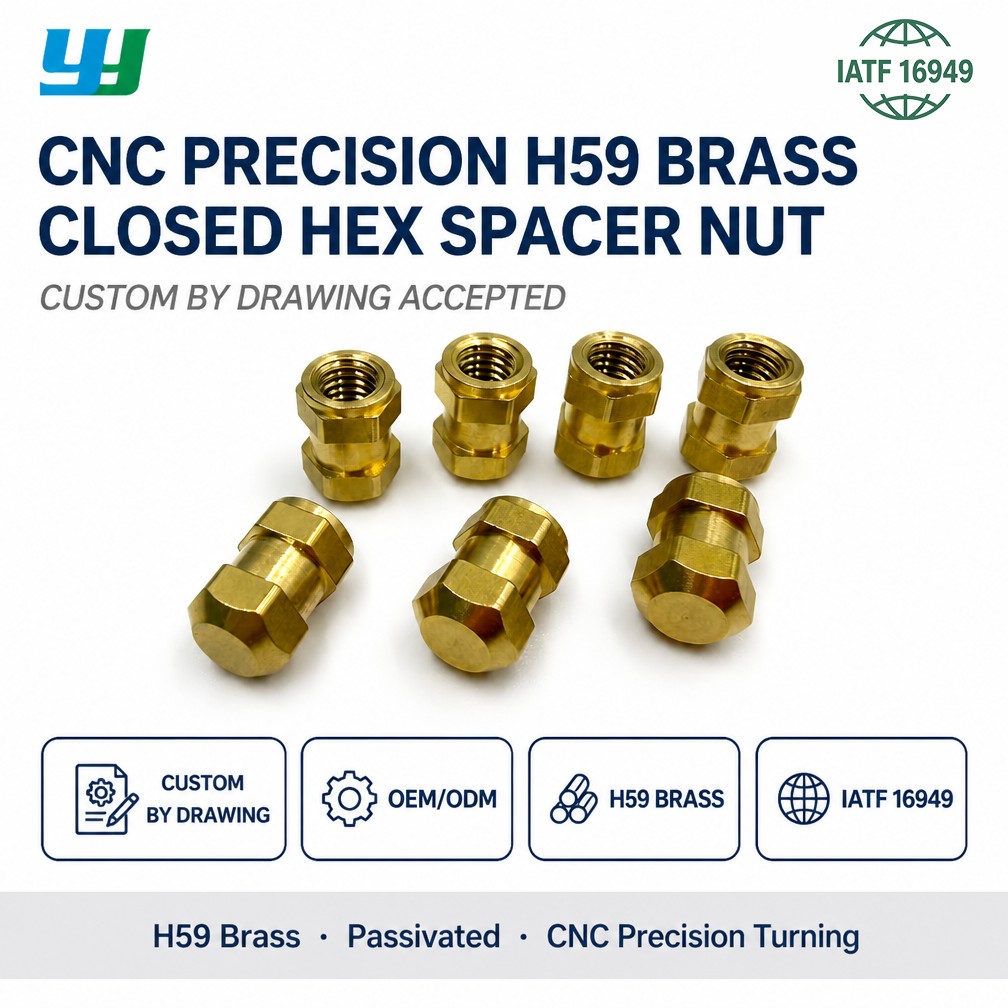

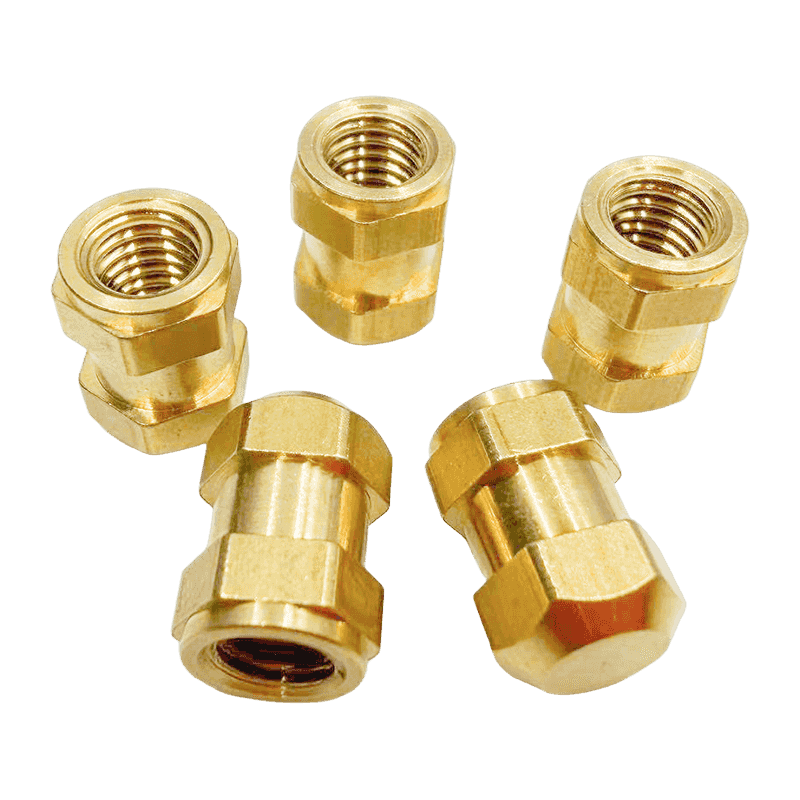

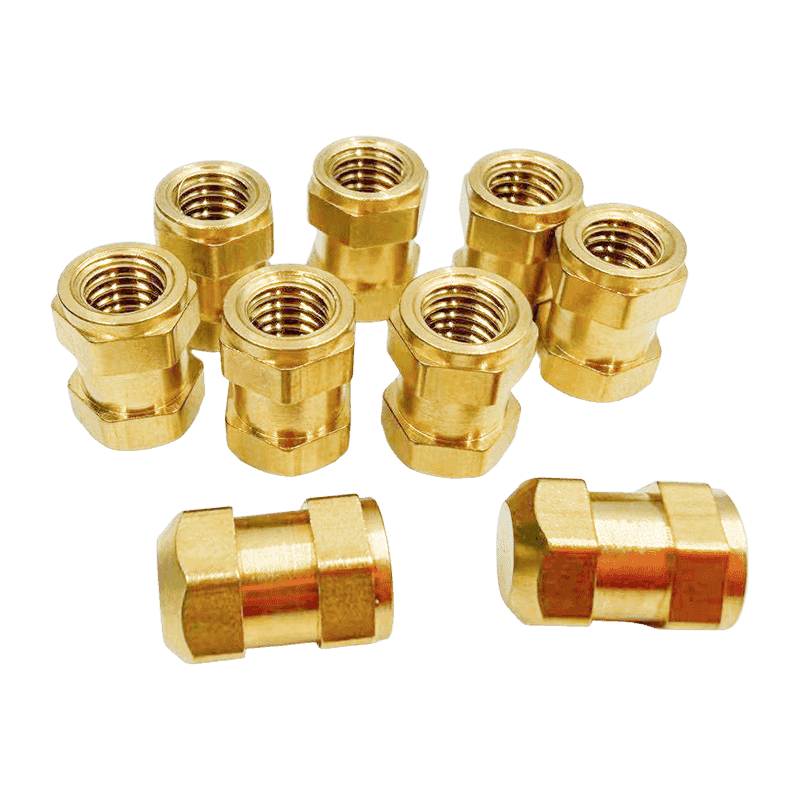

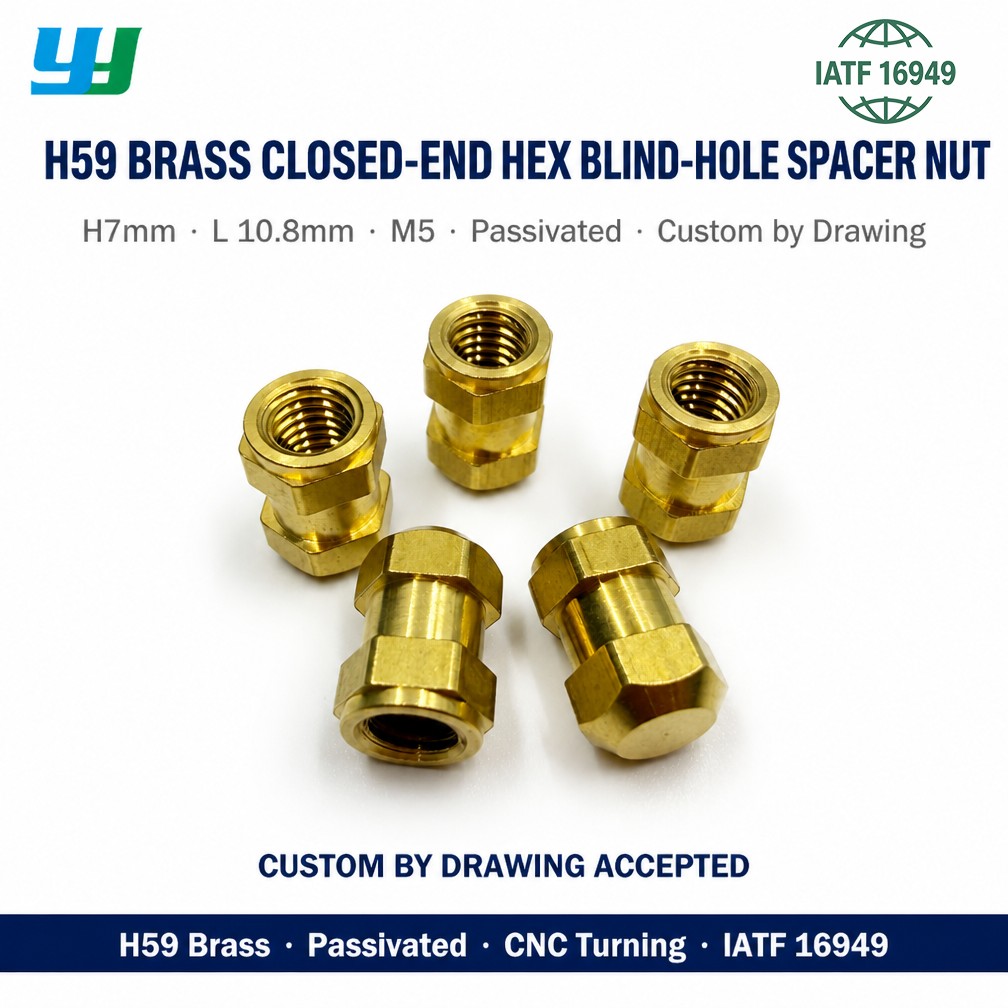

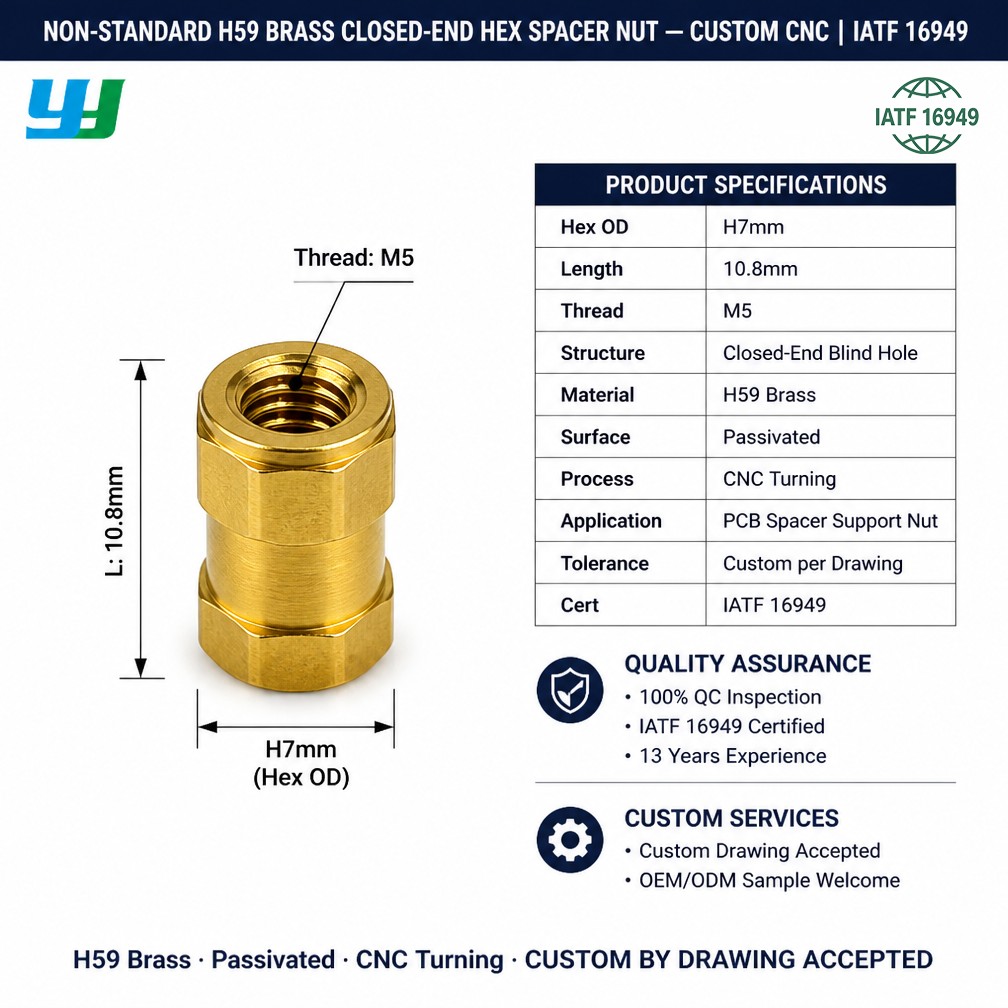

Single-End Threaded Brass Standoff / Blind-Hole Support Brass Nut

Product Specifications

Material	H59 Brass
Surface Treatment	Cleaning and Passivation

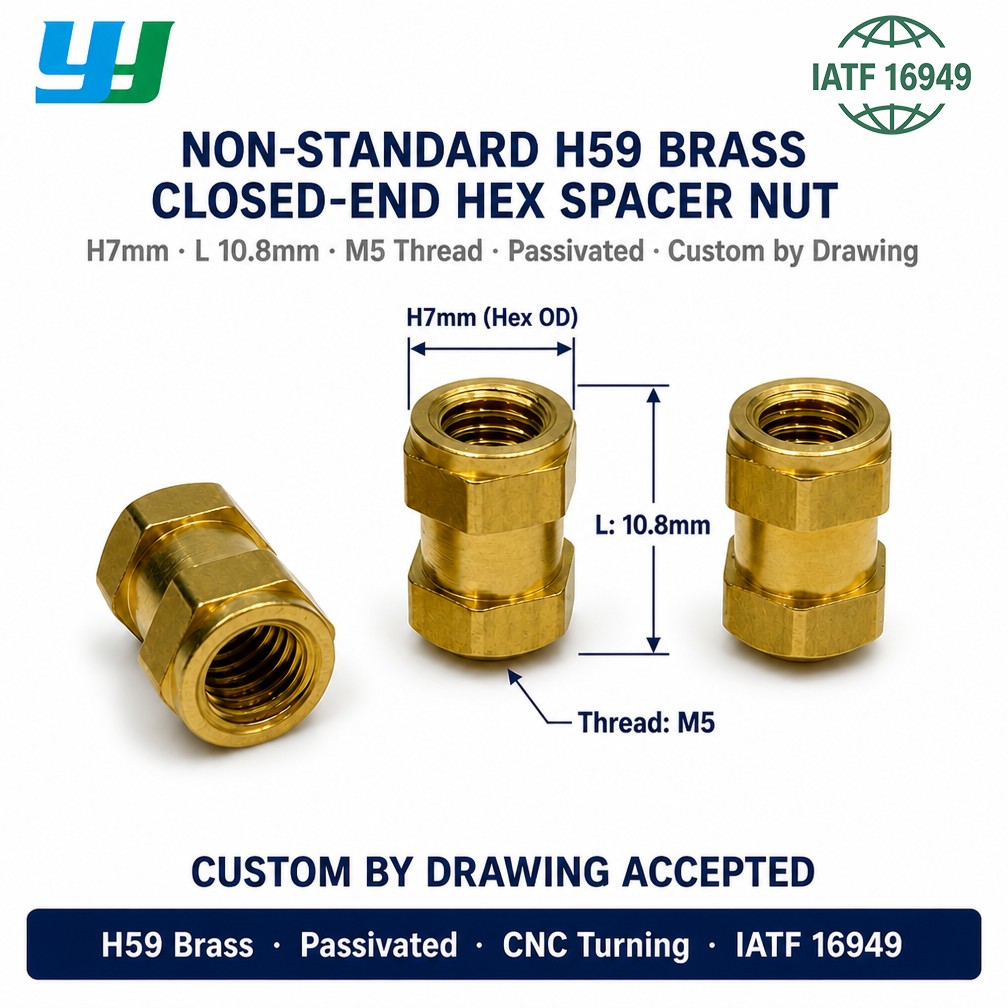

Hex Outer Diameter	7 mm
Total Length	10.8 mm
Thread	M5
Process	Machining
Thread Type	Single external thread, closed internal thread, blind hole
Price	Please contact us for current pricing.
Customization	Non-standard hex size, length, thread size, and blind-hole depth are available upon request.

Core Advantages

• Closed internal thread: The blind-hole design prevents screws from passing through the body and limits thread depth, which suits spacing and support functions.
• Hexagonal body: The hex profile allows tightening and loosening with a standard wrench during assembly and adjustment.
• Single external thread: The external thread enables the nut to be fixed into a threaded panel or chassis while providing an internal M5 thread for a mating screw.
• H59 brass construction: H59 brass offers thermal conductivity and corrosion resistance in typical indoor environments, and is compatible with common electronic and mechanical assemblies.
• Cleaning and passivation: The surface treatment removes machining residue and supports corrosion resistance on the brass surface.
• Dual function: The part can serve as a threaded spacer, standoff, or support nut depending on the assembly layout.
• M5 internal thread: Suits fasteners used in enclosures, panels, and chassis assemblies.

Product Features

• Closed internal thread with a blind-hole design.
• Hexagonal body with a single external thread.
• Machined H59 brass body with consistent dimensional tolerance.
• Internal M5 metric thread produced to standard pitch.
• Hex outer diameter of 7 mm and total length of 10.8 mm.
• Cleaning and passivation surface treatment.
• Suitable for spacing, elevation, and support between panels and boards.
• Can be produced to customer drawings for non-standard dimensions and thread configurations.

Applications

• Electronic enclosures and chassis assemblies
• Control panels and instrument casings
• PCB mounting and board spacing
• Power supply and equipment housings
• Telecommunications equipment
• Industrial machinery panels
• Prototype and low-volume assemblies
• Applications requiring board elevation or panel spacing with a threaded connection

FAQ and Solutions

Q1: What is the function of the closed internal thread?
A: The closed thread and blind hole prevent a screw from passing through the body. This suits spacing and support functions where a defined thread depth is required and through-access is not needed.

Q2: How is this part installed?
A: The external thread is fixed into a threaded panel or chassis, and the hex body can be tightened with a wrench. A mating screw is then threaded into the internal M5 thread.

Q3: What is the purpose of the cleaning and passivation treatment?
A: Cleaning removes machining oils, chips, and surface contamination. Passivation supports corrosion resistance on the brass surface. Together they prepare the part for use in electronic and mechanical assemblies.

Q4: What information is needed for a custom quote?
A: Please provide hex outer diameter, total length, internal and external thread sizes, blind-hole depth, material, surface treatment, quantity, and any drawing or tolerance requirements.

Precautions

• Confirm the external thread size and mating panel thread before installation.
• Use a wrench matched to the hex size to avoid deformation of the hex corners.
• Avoid excessive tightening torque, which can damage the external thread or the mating panel.
• Store in a dry environment to limit surface oxidation.
• Verify internal thread compatibility with the mating screw before assembly.
• For applications requiring electrical insulation, confirm the assembly layout before use.

Customization and Ordering

Non-standard brass spacers and nuts can be produced according to customer drawings or samples. Customization options include hex size, length, internal and external thread sizes, blind-hole depth, material, surface treatment, and chamfer. Please contact us with your specifications and application details for a quotation.
