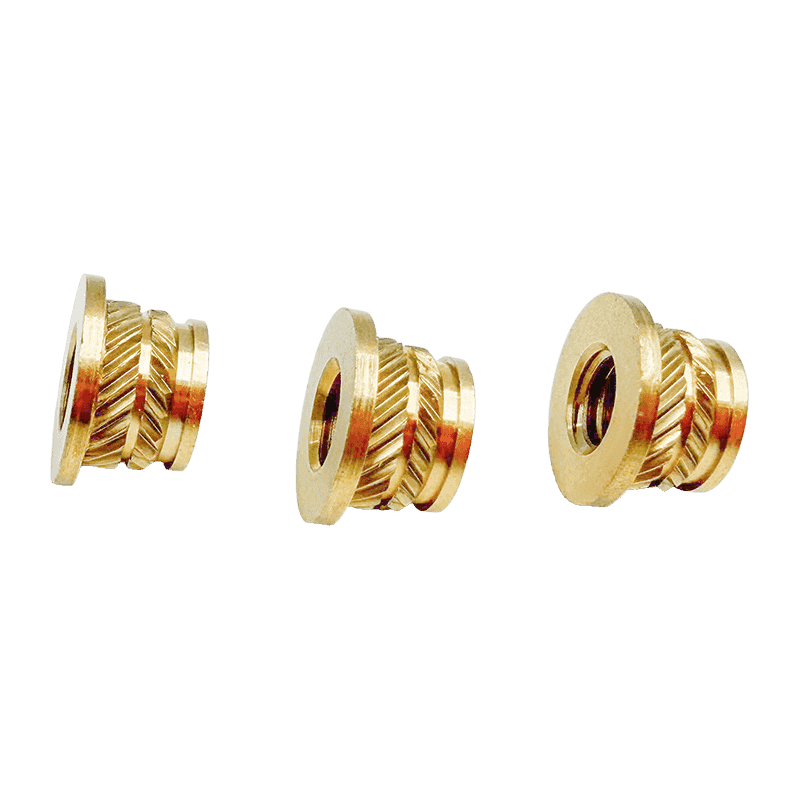

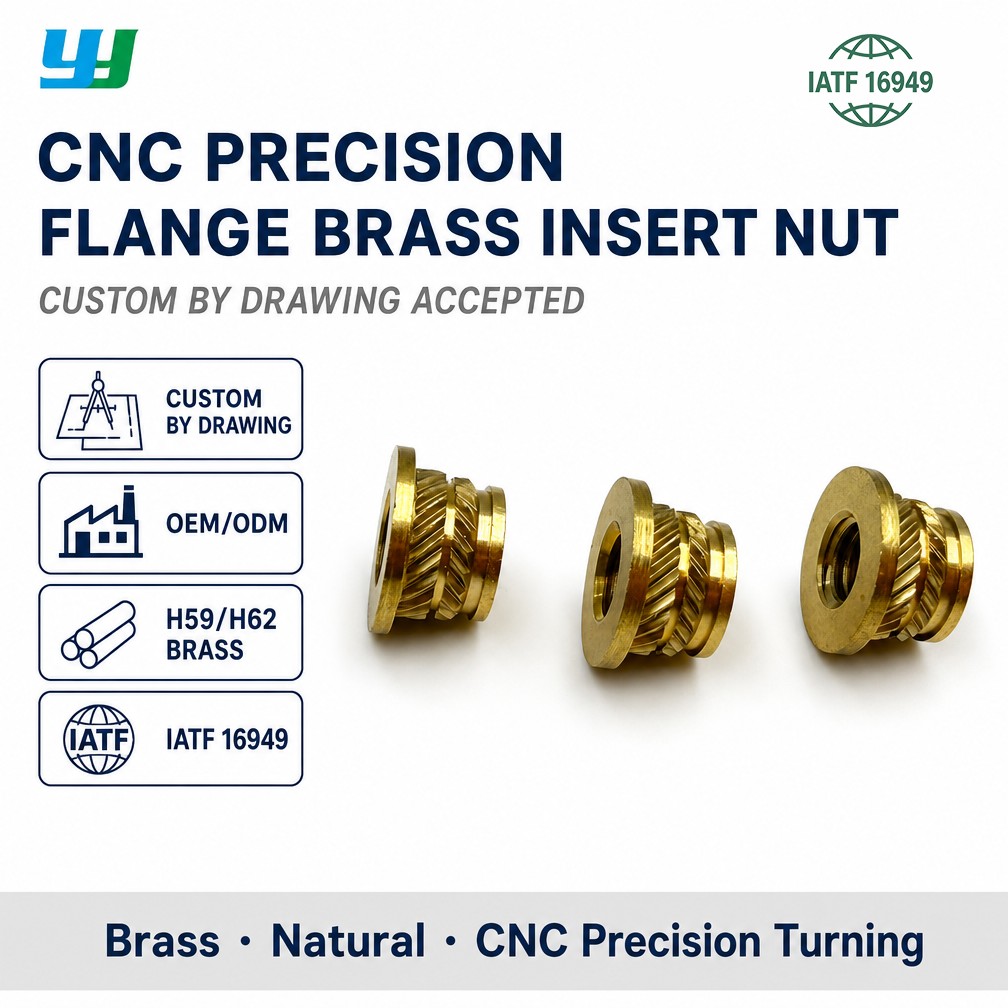

Brass Embedded Nut with Diagonal Knurling

Product Specifications

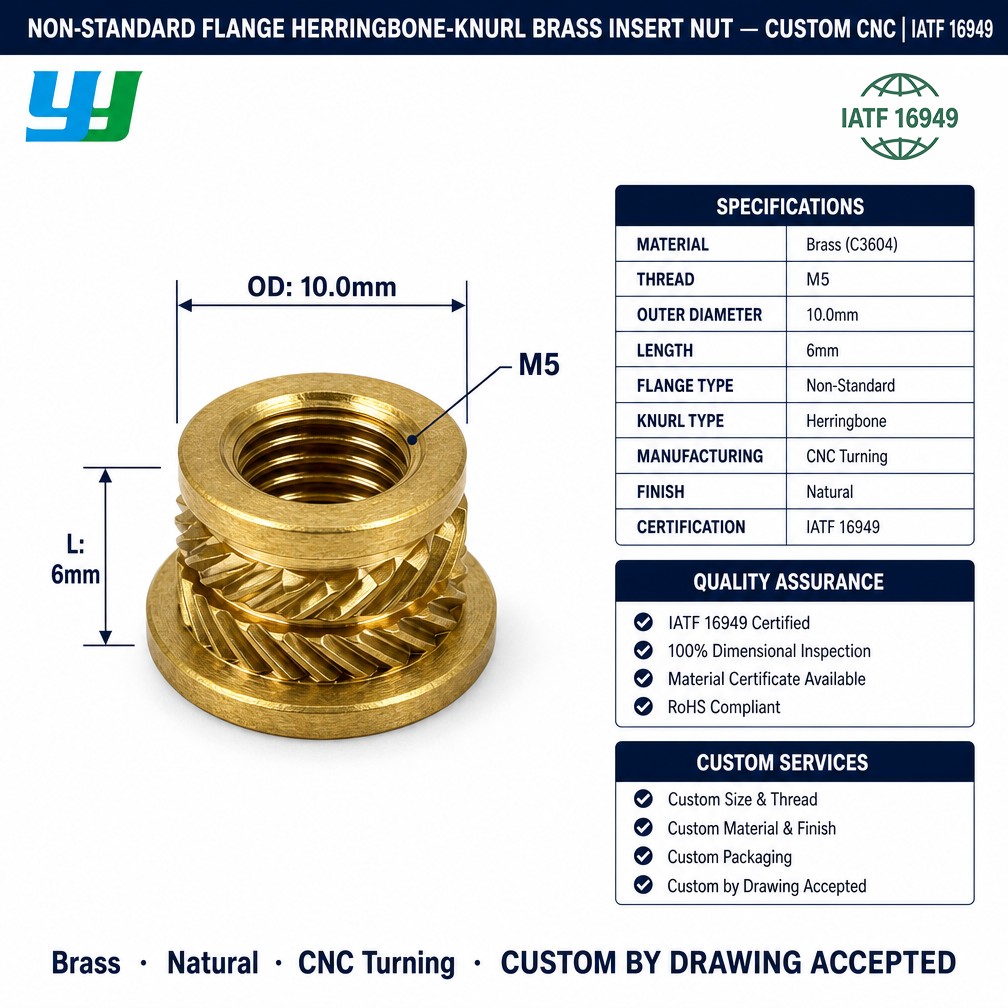

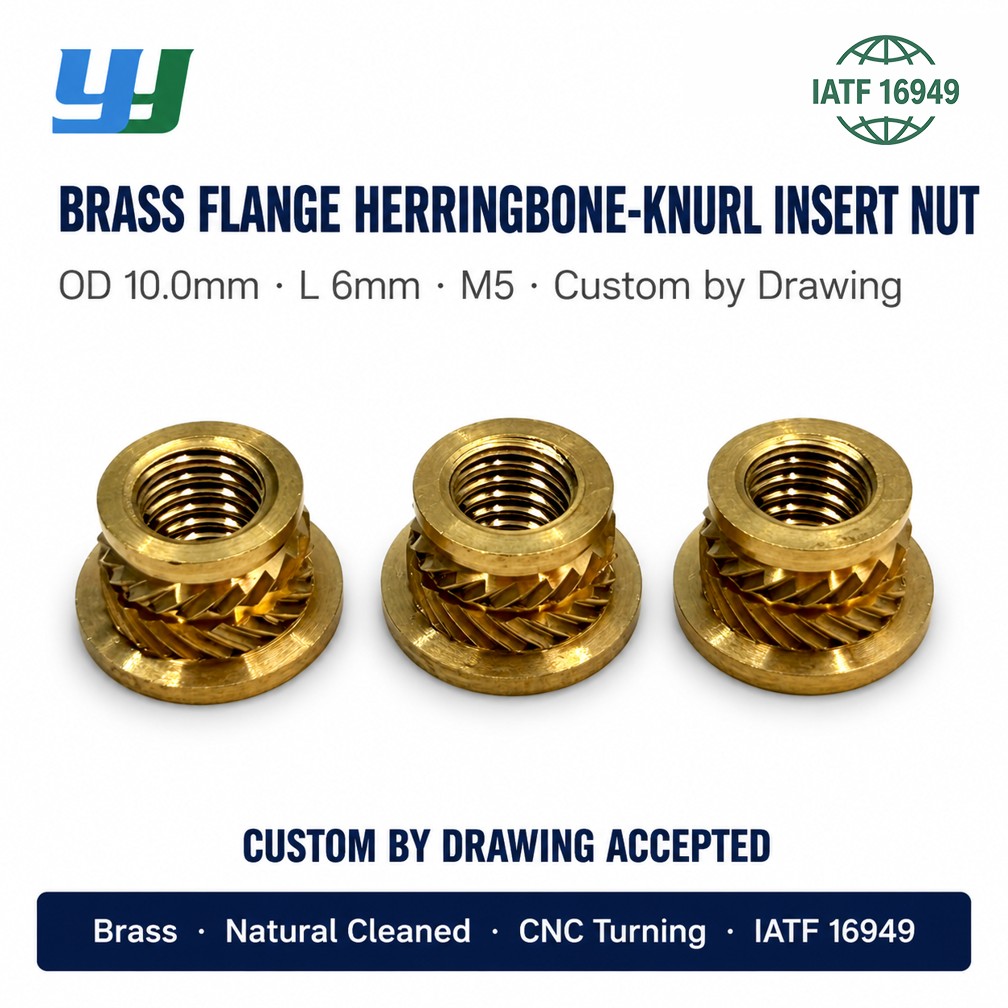

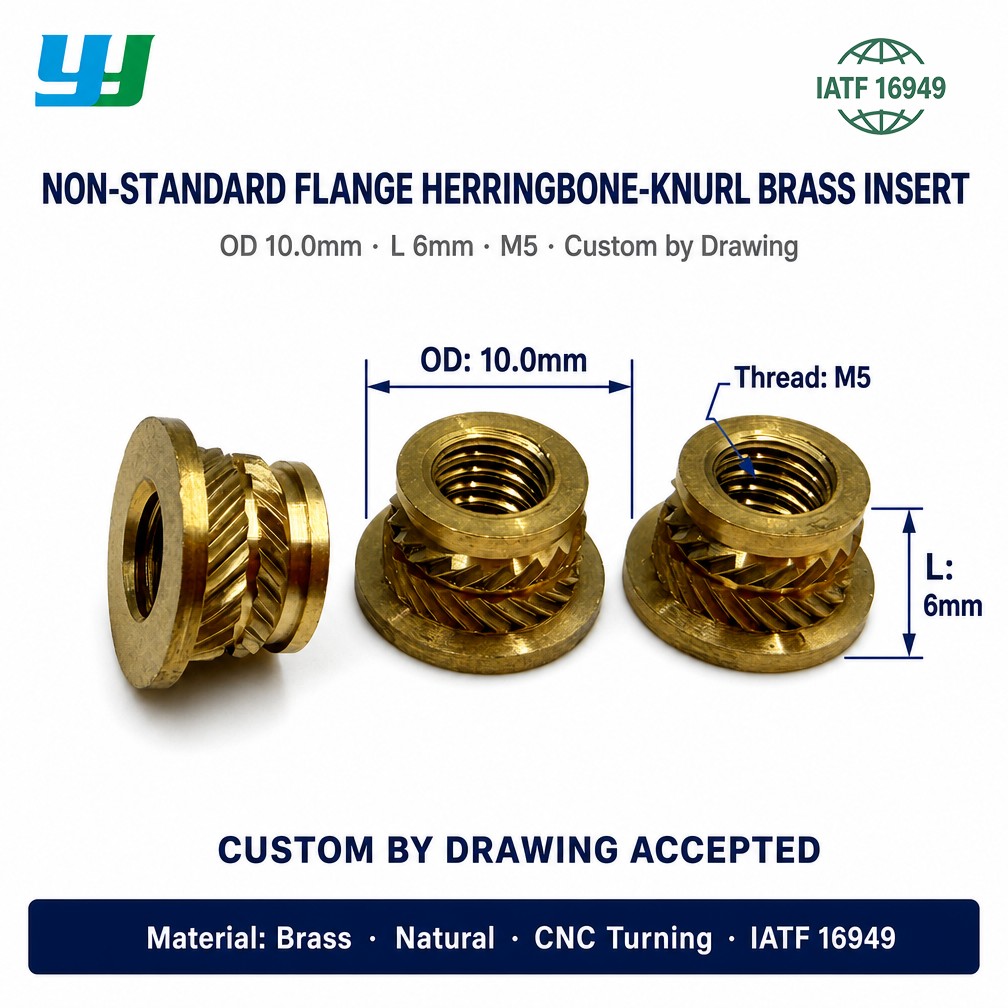

Material	Brass
Surface Treatment	Cleaning
Outer Diameter	10.0 mm
Total Length	6 mm
Thread	M5
Process	CNC turning

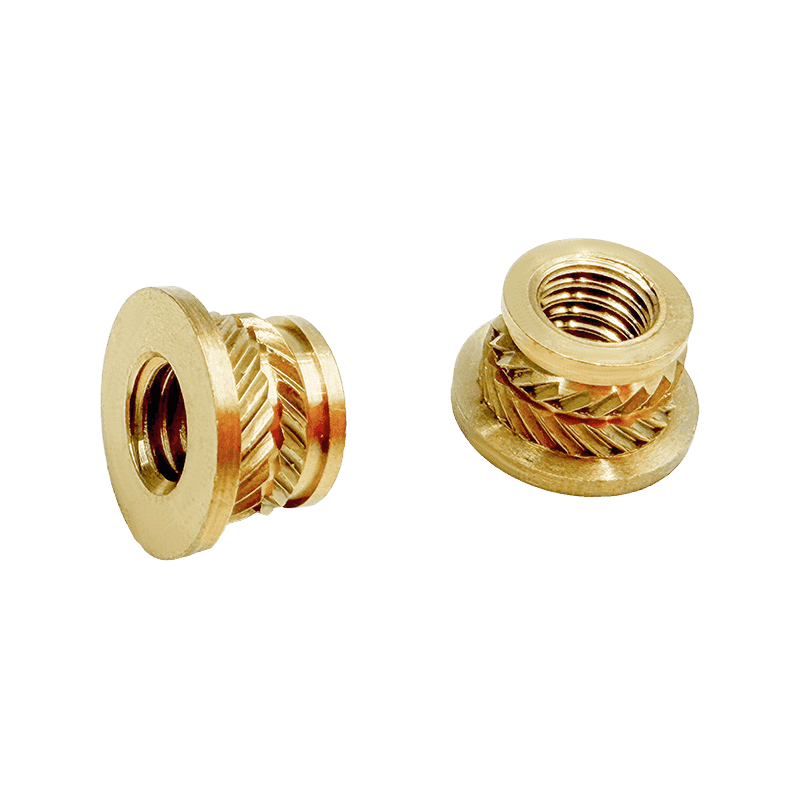

Knurl Type	Diagonal knurling on the body, with a surface flange at the top
Price	Please contact us for current pricing.
Customization	Non-standard outer diameter, length, thread size, flange dimensions, and knurl pattern are available upon request.

Core Advantages

• Surface flange: The flange provides a bearing surface against the plastic, distributes load at the contact face, and limits insertion depth during installation.
• Diagonal knurling: The angled knurl pattern engages the thermoplastic in both rotational and axial directions, supporting torque and pull-out resistance.
• Anti-pull-out geometry: The knurled body creates mechanical interlock with the plastic after molding or heat staking.
• Brass construction: Brass offers thermal conductivity and corrosion resistance in typical indoor environments, and is compatible with common molding and heat-staking processes.
• Cleaned surface: The cleaning treatment removes machining residue and prepares the surface for consistent insertion behavior.
• M5 internal thread: Suits fasteners used in medium-size housings and structural plastic parts.
• Customizable flange: Flange diameter and thickness can be adjusted to match specific boss designs.

Product Features

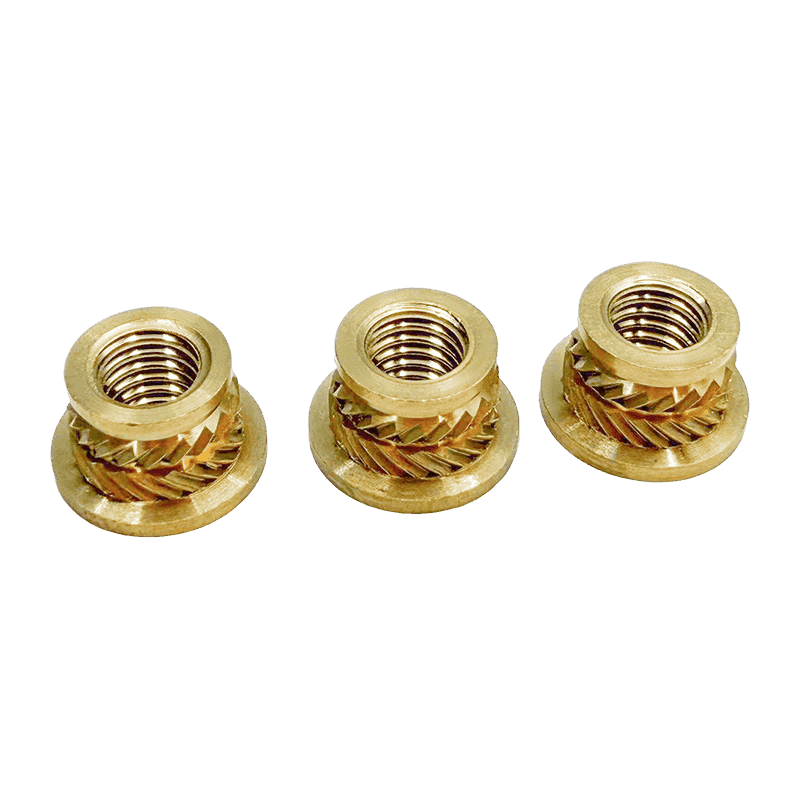

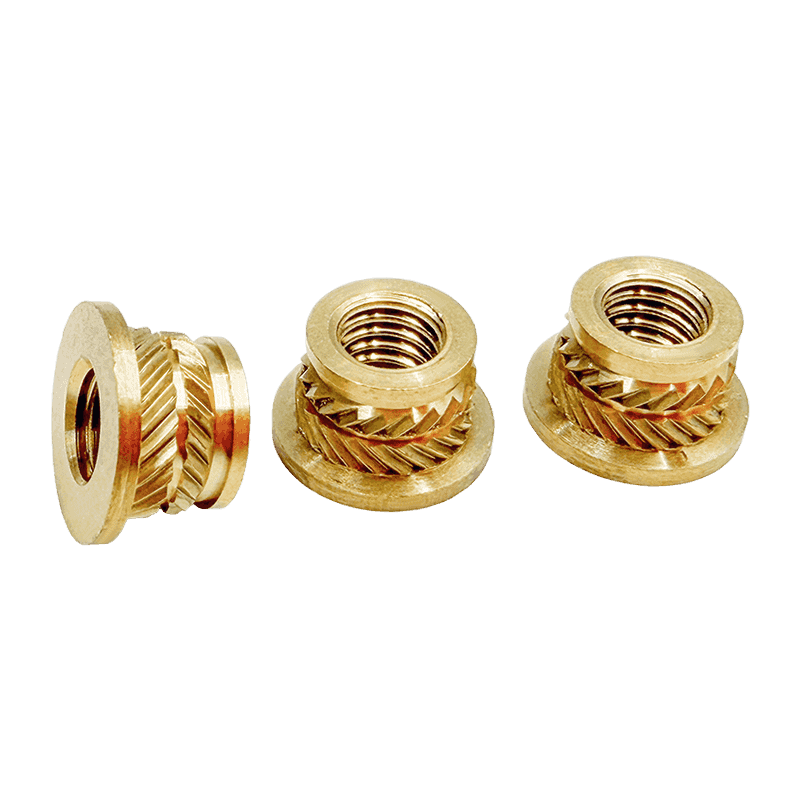

• Surface flange at the top, with diagonal knurling along the insert body.
• Flange profile for seating against the plastic surface and limiting insertion depth.
• Machined brass body with consistent dimensional tolerance.
• Internal M5 metric thread produced to standard pitch.
• Outer diameter of 10.0 mm and total length of 6 mm.
• Surface cleaning treatment for removal of cutting fluid and fine particles.
• Suitable for insert molding, heat staking, ultrasonic insertion, and press-fit.
• Can be produced to customer drawings for non-standard dimensions and flange geometry.

Applications

• Consumer electronics housings and enclosures
• Home appliance plastic components
• Automotive interior plastic components
• Industrial control panels and instrument casings
• Power tool and equipment housings
• Telecommunications equipment
• Prototype and low-volume molded assemblies
• Thermoplastic parts requiring repeated fastening and disassembly

FAQ and Solutions

Q1: What is the function of the surface flange?

A: The flange provides a bearing surface against the plastic and limits how far the insert can be pressed or heat-staked into the hole. It also distributes load at the contact face during tightening.

Q2: How is this insert installed?

A: It can be installed by insert molding, heat staking, ultrasonic insertion, or press-fit, depending on the plastic type and wall thickness. Heat staking is commonly used for thermoplastics because the melted plastic flows into the knurl and resets around it.

Q3: Can the outer diameter, length, or thread be customized?

A: Yes. Outer diameter, total length, thread size, flange dimensions, and knurl pattern can be produced to customer drawings or samples.

Q4: What information is needed for a custom quote?

A: Please provide outer diameter, total length, thread size, flange diameter and thickness, knurl type, material, surface treatment, quantity, and any drawing or tolerance requirements.

Precautions

• Confirm the molded hole diameter, flange dimensions, and boss wall thickness before installation.
• Use installation parameters recommended for the specific plastic material.
• Avoid excessive heat during heat staking, which can deform the surrounding plastic.
• Store in a dry environment to limit surface oxidation.
• Verify thread compatibility with the mating screw before assembly.
• For high-torque applications, test the insert in the actual plastic to confirm performance.

Customization and Ordering

Non-standard brass embedded nuts can be produced according to customer drawings or samples. Customization options include outer diameter, length, thread size, flange dimensions, knurl type, chamfer, and surface treatment. Please contact us with your specifications and application details for a quotation.
