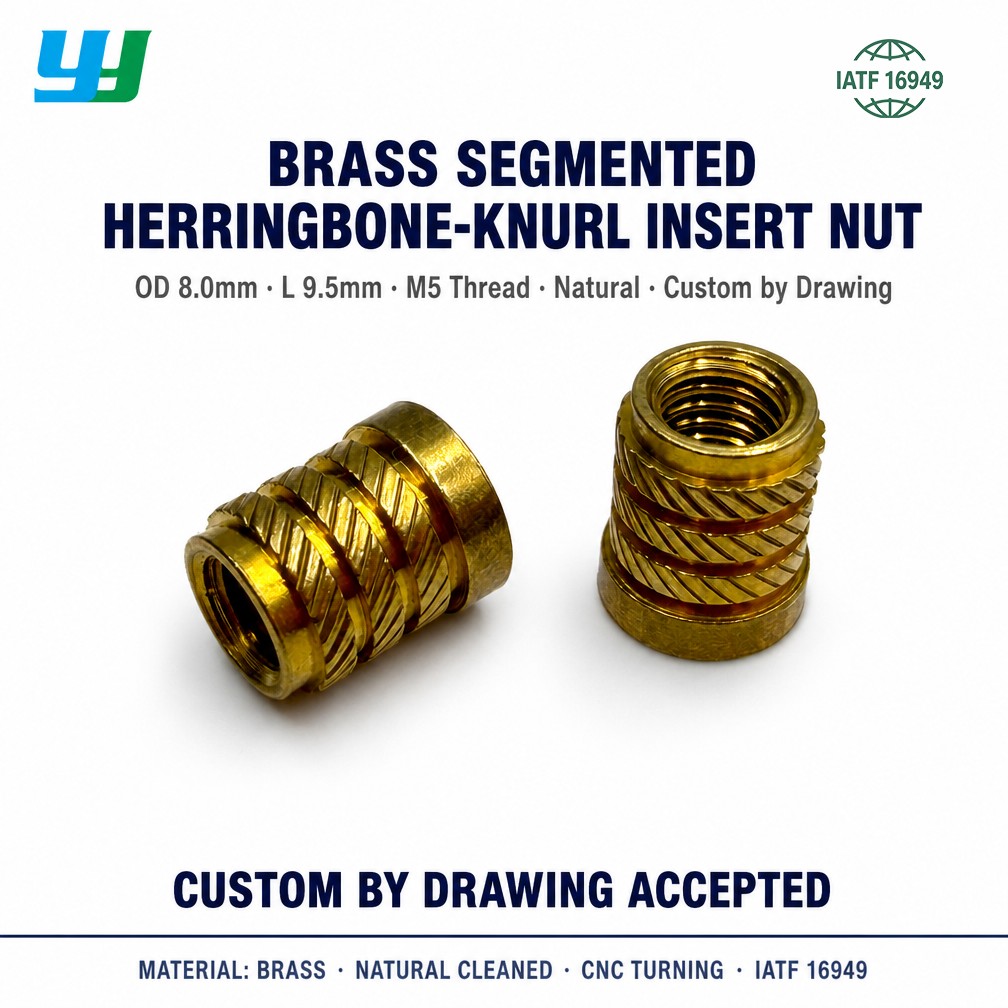

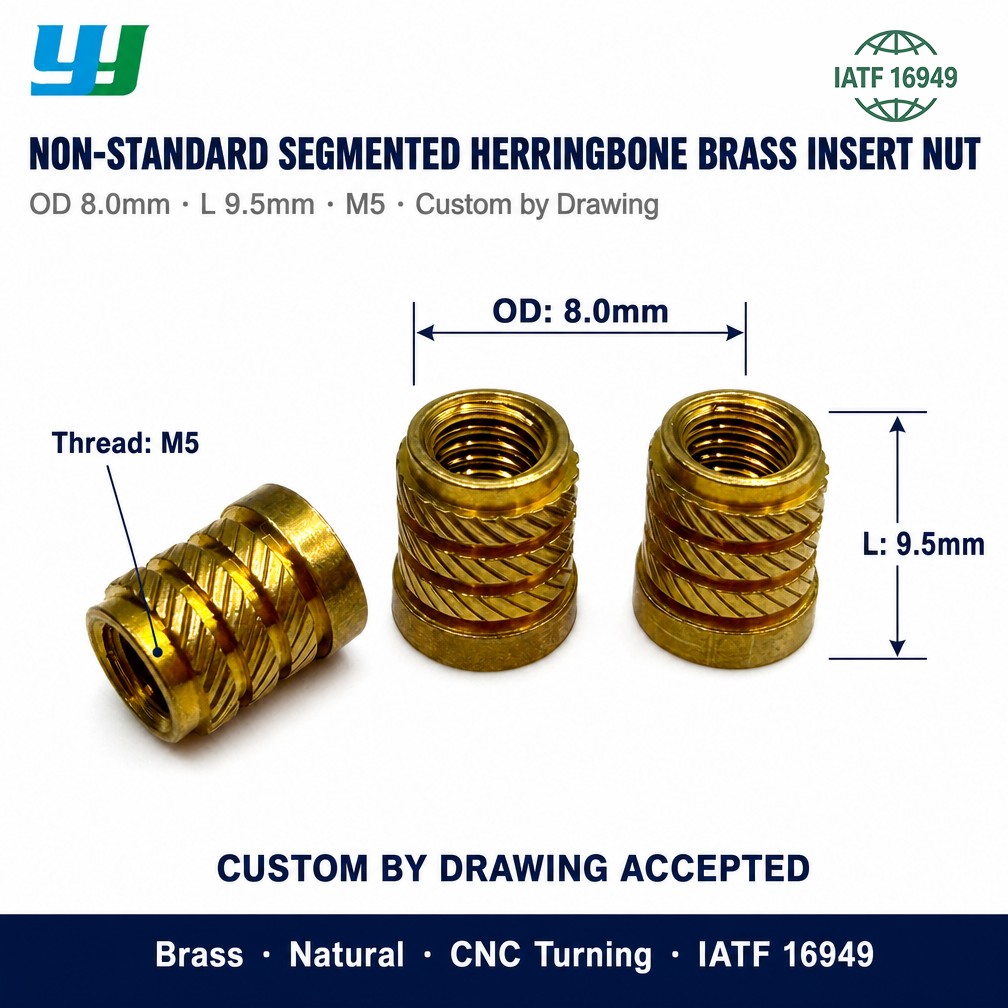

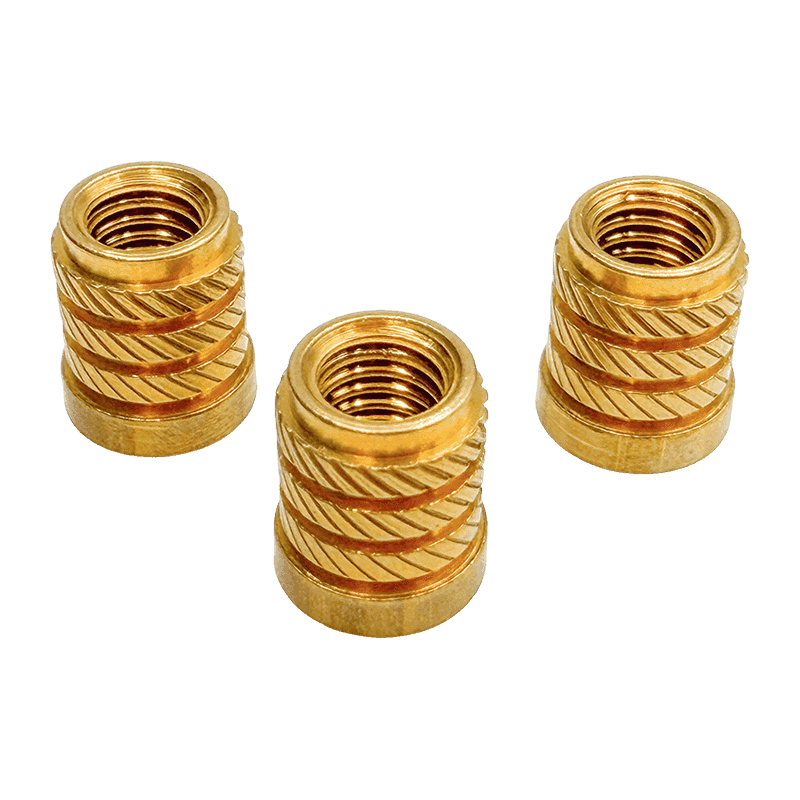

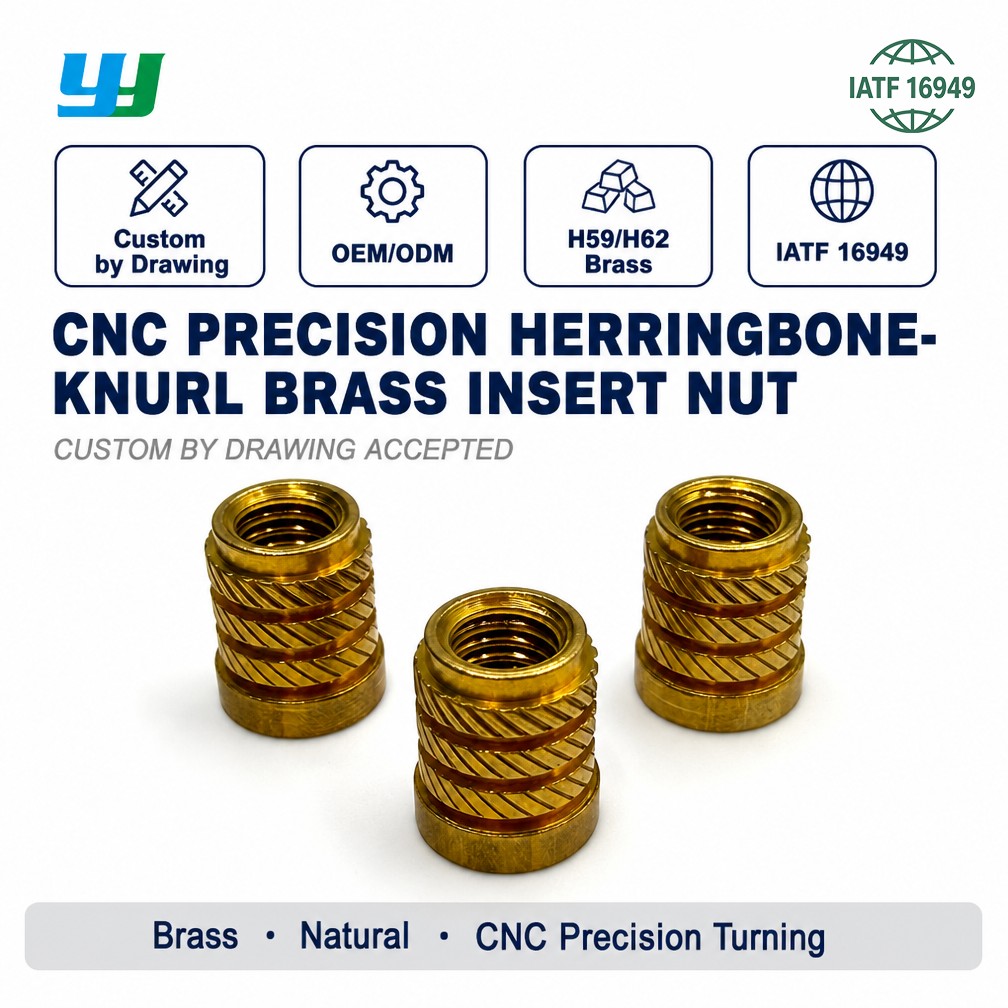

Brass Embedded Nut with Diagonal Knurling, Segmented Herringbone-Pattern Brass Nut

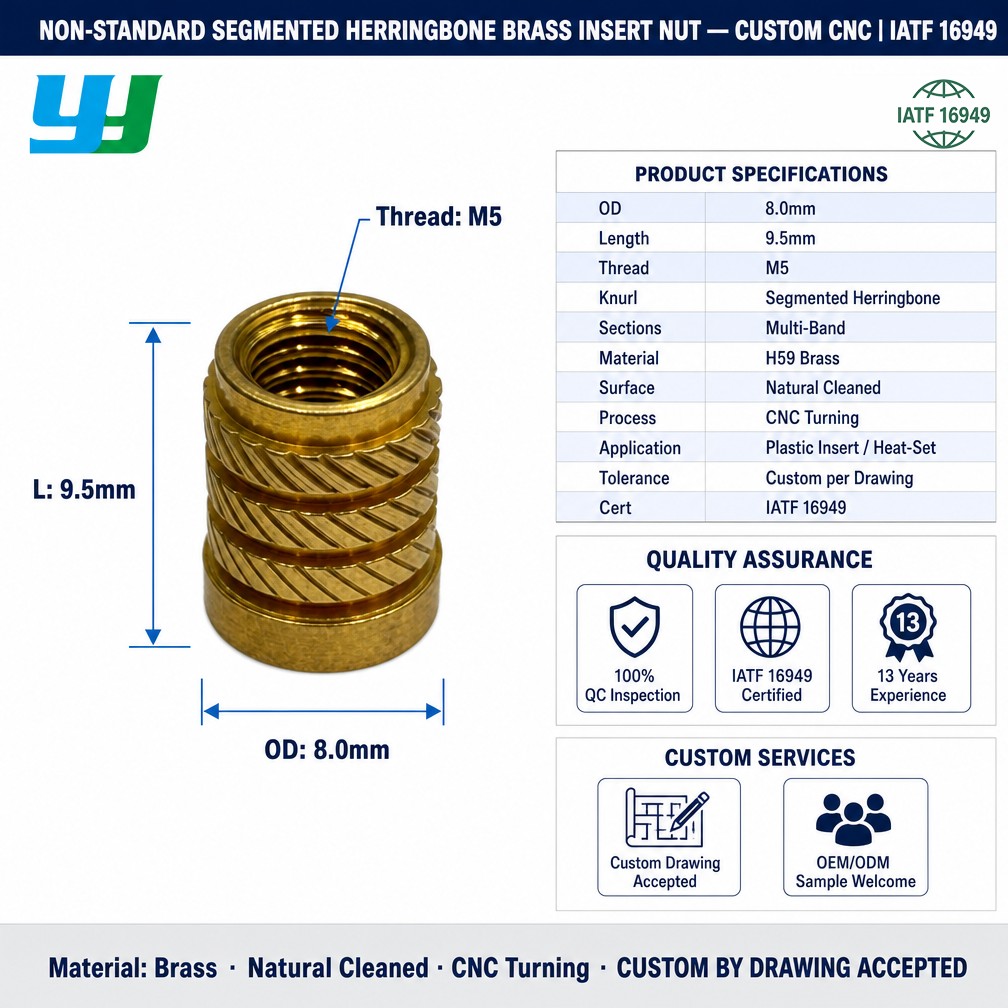

Product Specifications

Material	Brass
Surface Treatment	Cleaning
Outer Diameter	8.0 mm
Total Length	9.5 mm
Thread	M5
Process	CNC turning
Knurl Type	Segmented diagonal knurling with a herringbone pattern
Price	Please contact us for current pricing.
Customization	Non-standard outer diameter, length, thread size, knurl pattern, and segment layout are available upon request.

Core Advantages

• Segmented diagonal knurling: Multiple knurled bands along the body increase the contact area with the plastic and provide several engagement zones.
• Herringbone pattern: The angled knurl direction engages the plastic in both rotational and axial directions, supporting torque and pull-out resistance.
• Anti-pull-out geometry: The knurled sections create mechanical interlock with the plastic after molding or heat staking.
• Brass construction: Brass offers thermal conductivity and corrosion resistance in typical indoor environments, and is compatible with common molding and heat-staking processes.
• Cleaned surface: The cleaning treatment removes machining residue and prepares the surface for consistent insertion behavior.
• M5 internal thread: Suits fasteners used in medium-size housings and plastic parts.
• Customizable segment layout: The number and spacing of knurl segments can be adjusted to match specific boss designs.

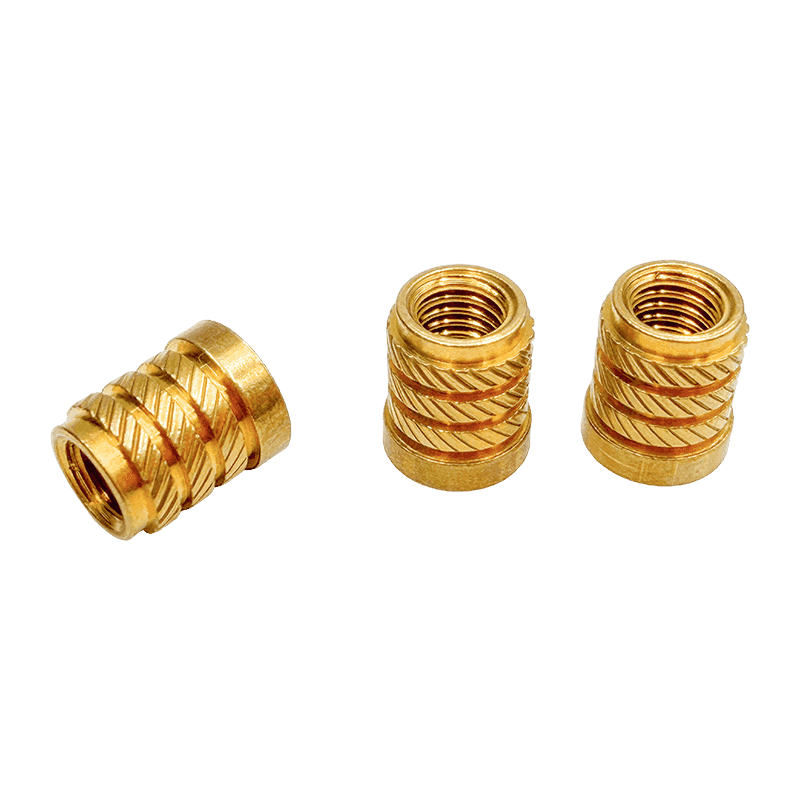

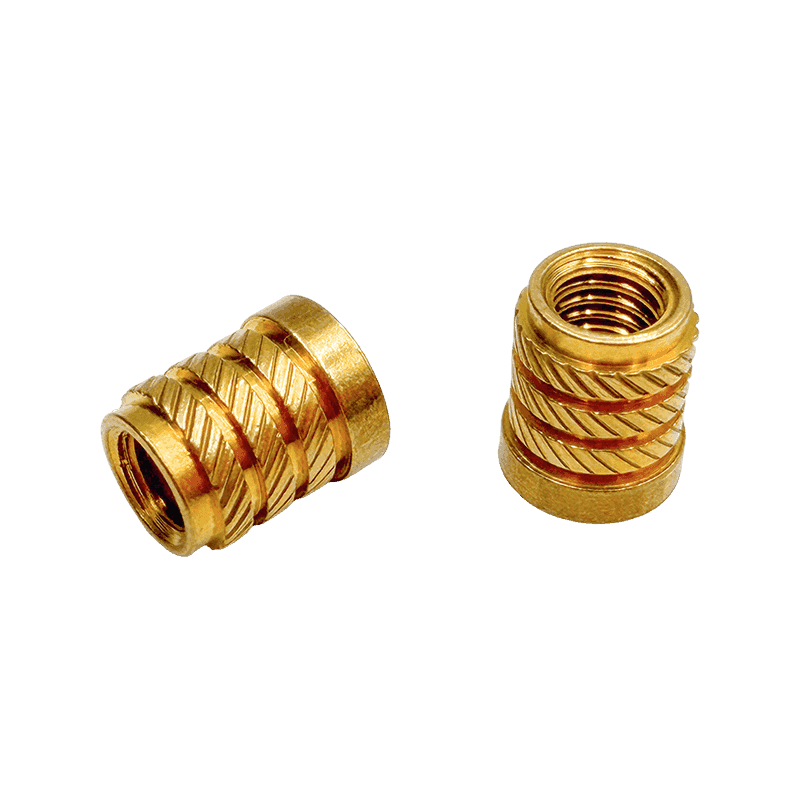

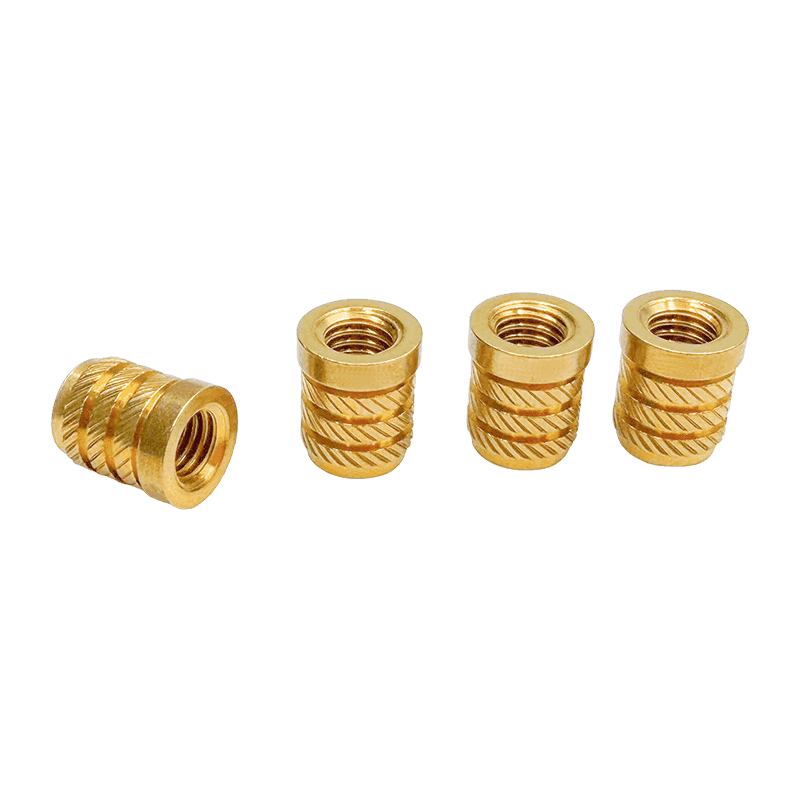

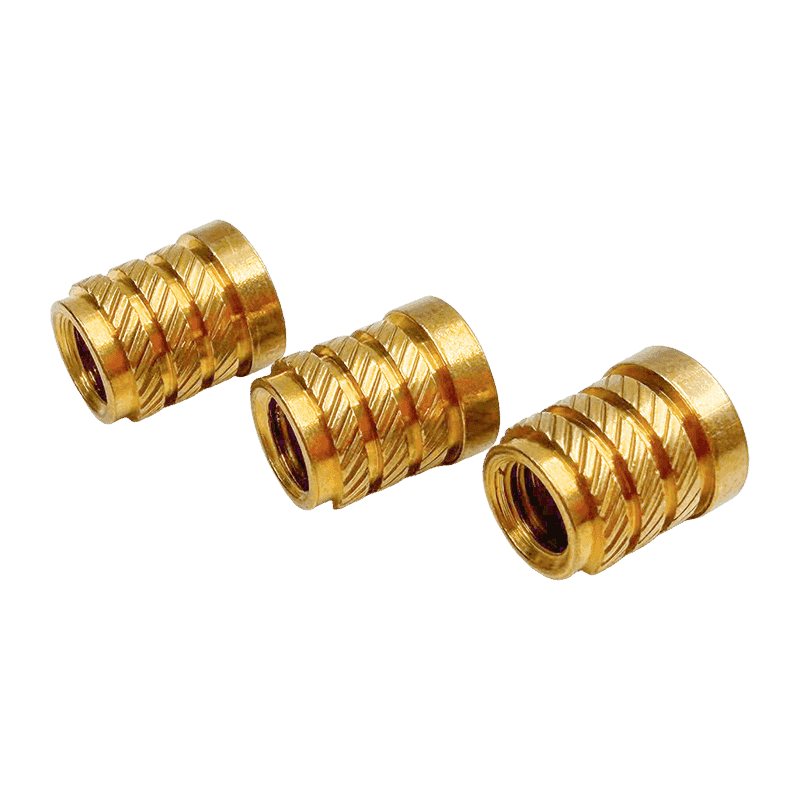

Product Features

• Segmented diagonal knurling with a herringbone pattern along the body.
• Multiple knurled bands for engagement within the plastic.
• Machined brass body with consistent dimensional tolerance.
• Internal M5 metric thread produced to standard pitch.
• Outer diameter of 8.0 mm and total length of 9.5 mm.
• Cleaning surface treatment for removal of cutting fluid and fine particles.
• Suitable for insert molding, heat staking, ultrasonic insertion, and press-fit.
• Can be produced to customer drawings for non-standard dimensions and knurl segment layout.

Applications

• Consumer electronics housings and enclosures
• Home appliance plastic components
• Automotive interior plastic components
• Industrial control panels and instrument casings
• Power tool and equipment housings
• Telecommunications equipment
• Prototype and low-volume molded assemblies
• Thermoplastic parts requiring repeated fastening and disassembly

FAQ and Solutions

Q1: What is the purpose of the segmented herringbone knurling?
A: Multiple knurled segments provide several engagement zones within the plastic, and the angled knurl direction engages the material in both rotational and axial directions. This can improve torque and pull-out resistance compared with a single knurled band.

Q2: How is this insert installed?
A: It can be installed by insert molding, heat staking, ultrasonic insertion, or press-fit, depending on the plastic type and wall thickness. Heat staking is commonly used for thermoplastics because the melted plastic flows into the knurl and resets around it.

Q3: Can the outer diameter, length, or thread be customized?
A: Yes. Outer diameter, total length, thread size, knurl pattern, and segment layout can be produced to customer drawings or samples.

Q4: What information is needed for a custom quote?
A: Please provide outer diameter, total length, thread size, knurl type, segment layout, material, surface treatment, quantity, and any drawing or tolerance requirements.

Precautions

• Confirm the molded hole diameter and boss wall thickness before installation.
• Use installation parameters recommended for the specific plastic material.
• Avoid excessive heat during heat staking, which can deform the surrounding plastic.
• Store in a dry environment to limit surface oxidation.
• Verify thread compatibility with the mating screw before assembly.
• For high-torque applications, test the insert in the actual plastic to confirm performance.

Customization and Ordering

Non-standard brass embedded nuts can be produced according to customer drawings or samples. Customization options include outer diameter, length, thread size, knurl type, segment layout, material, surface treatment, and chamfer. Please contact us with your specifications and application details for a quotation.
