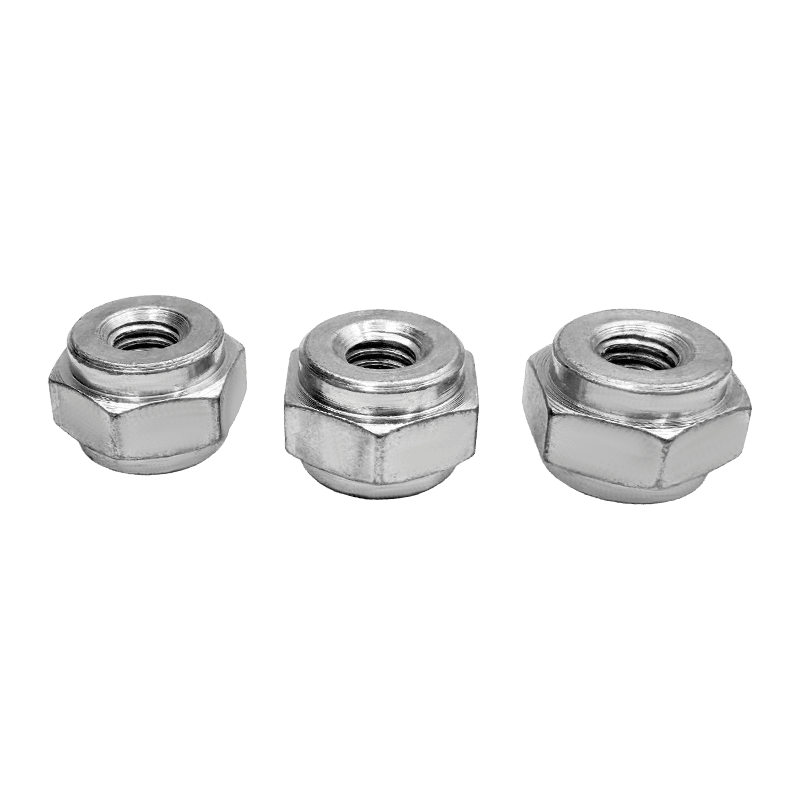

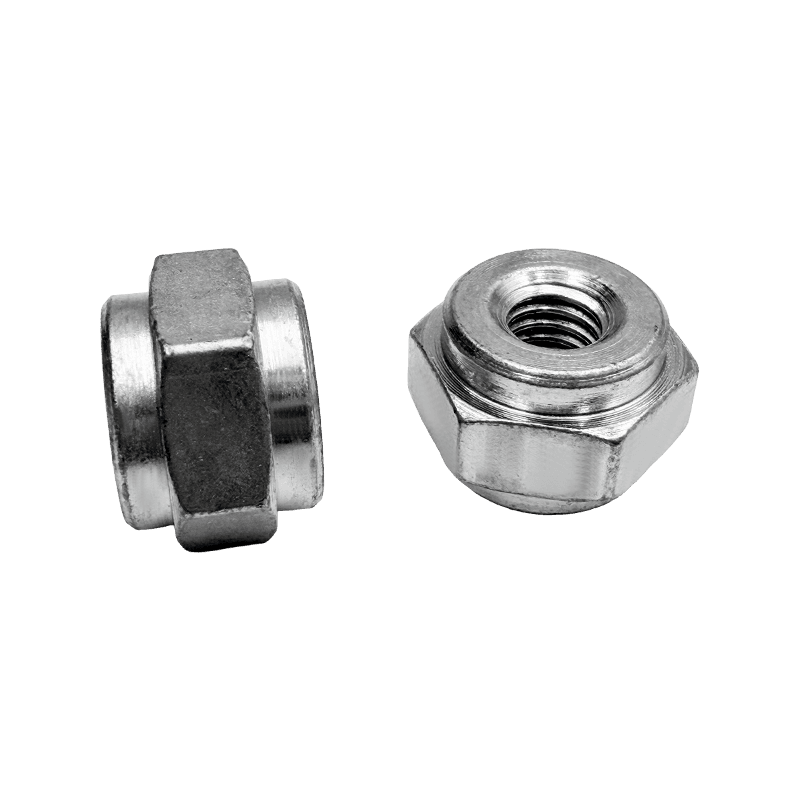

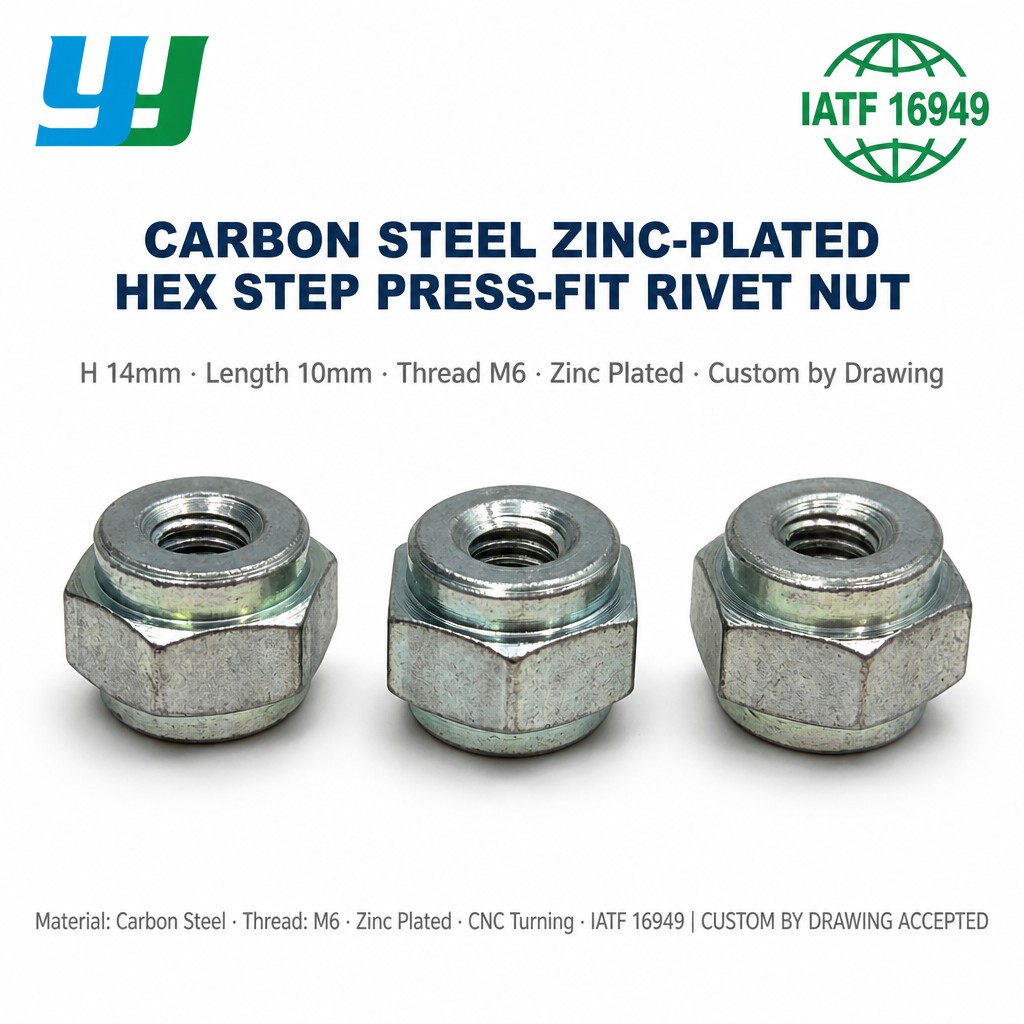

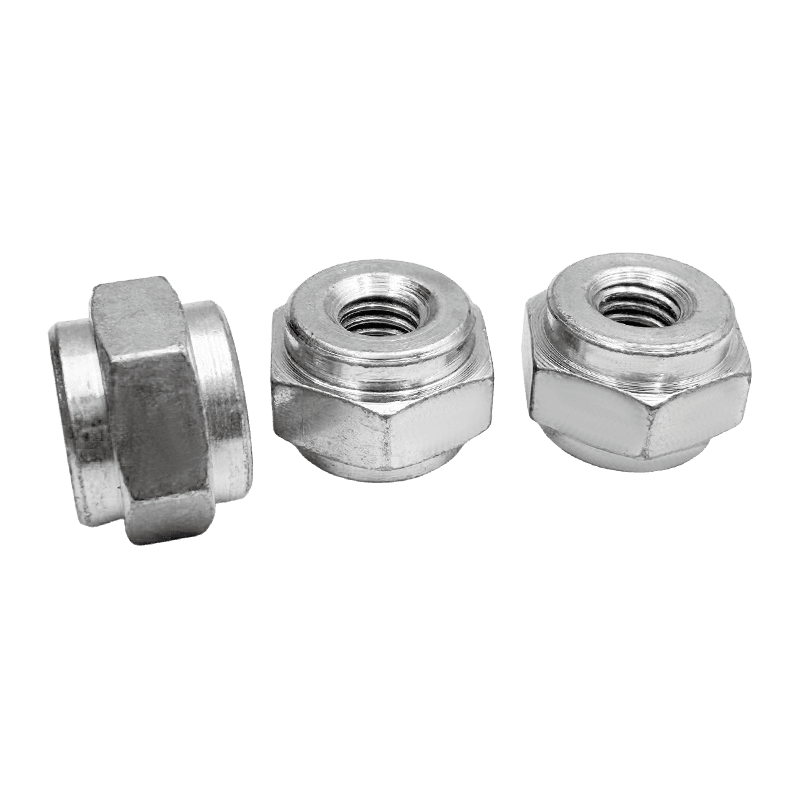

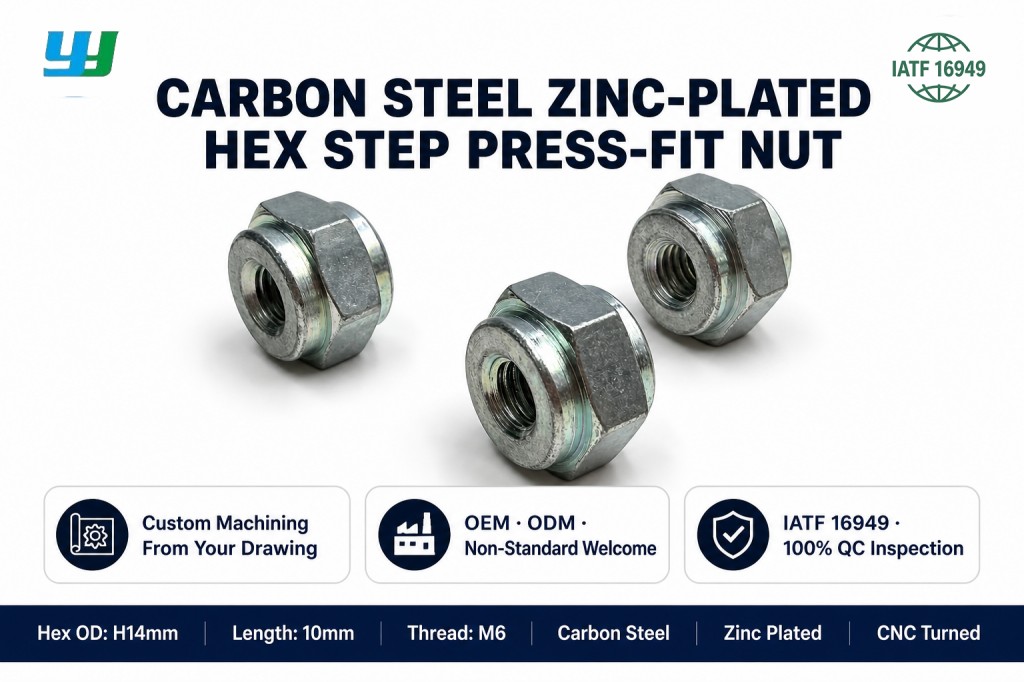

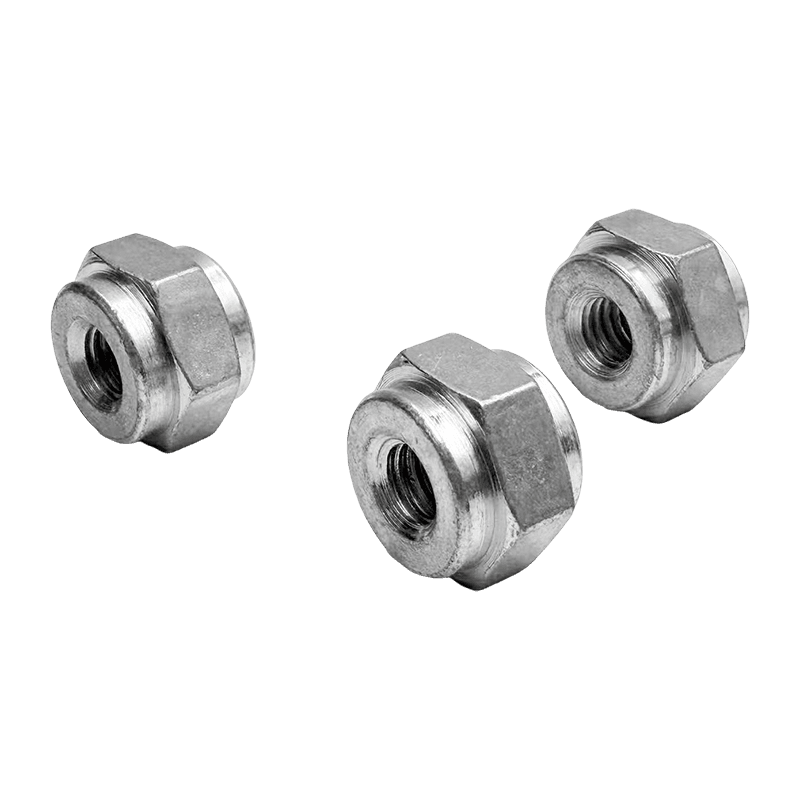

Hex-Step Self-Clinching Nut, Anti-Rotation Carbon Steel Zinc-Plated Sheet Metal Nut

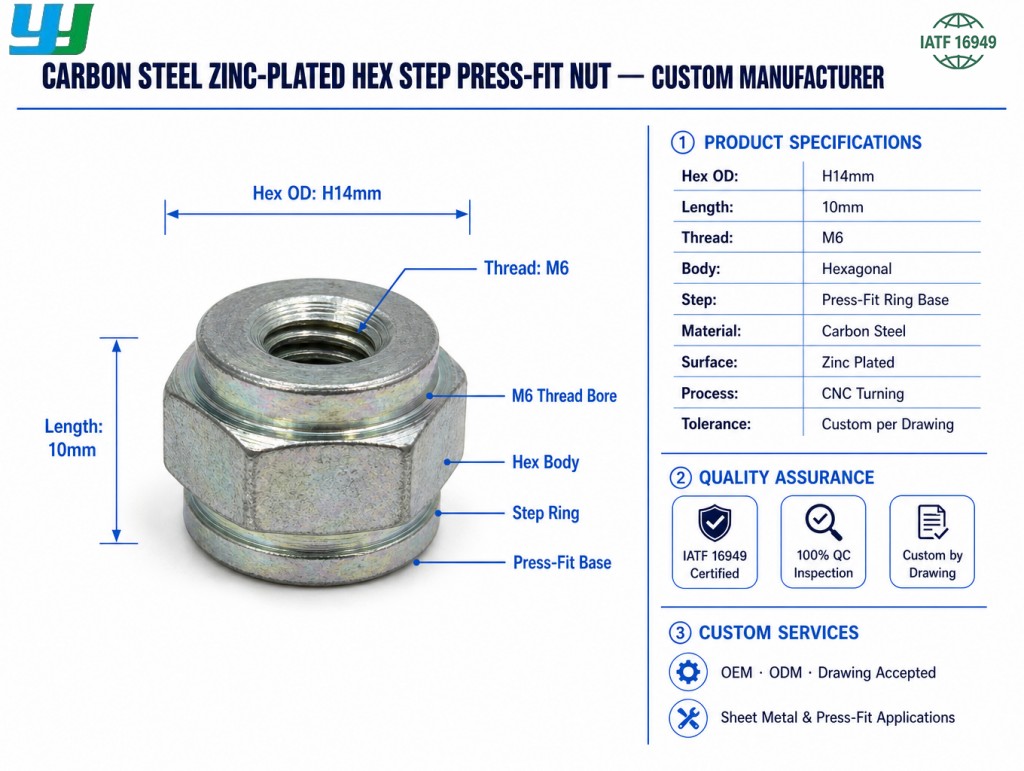

Product Specifications

Material	Iron
Surface Treatment	Zinc Plating

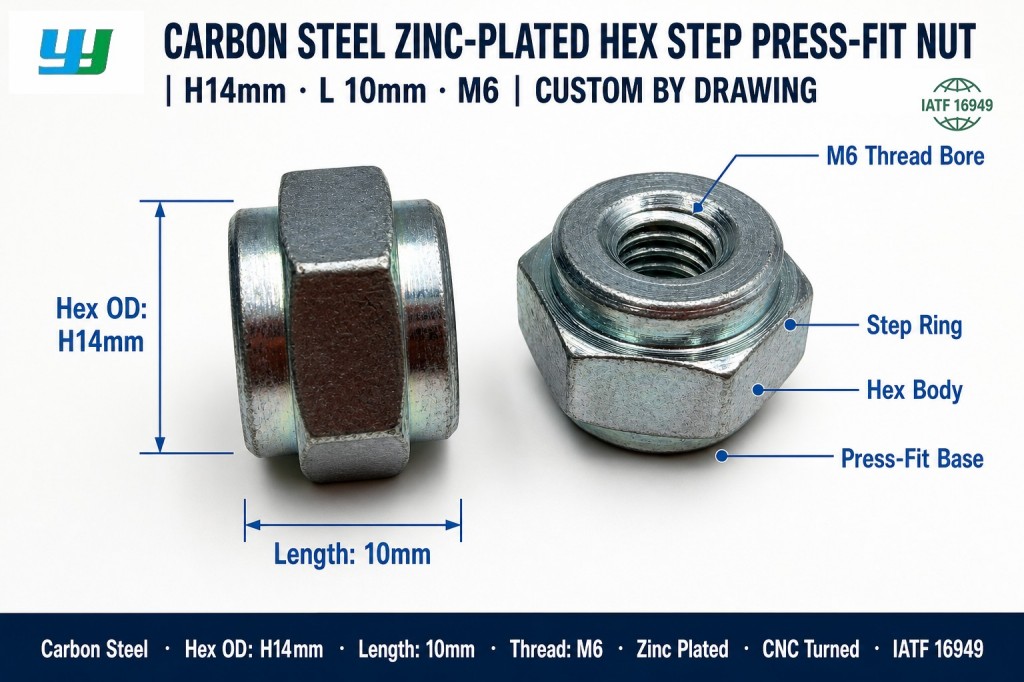

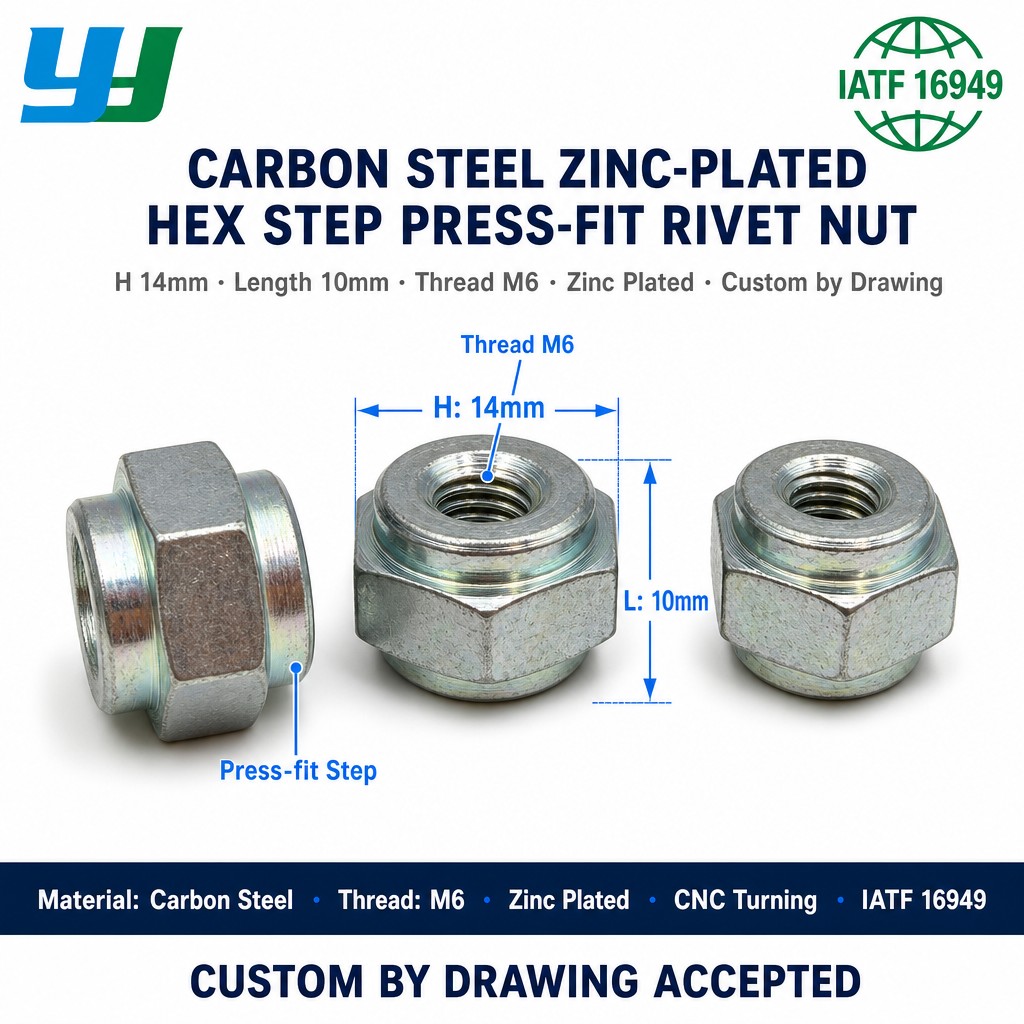

Hex Outer Diameter	14 mm
Total Length	10 mm
Thread	M6
Process	CNC turning

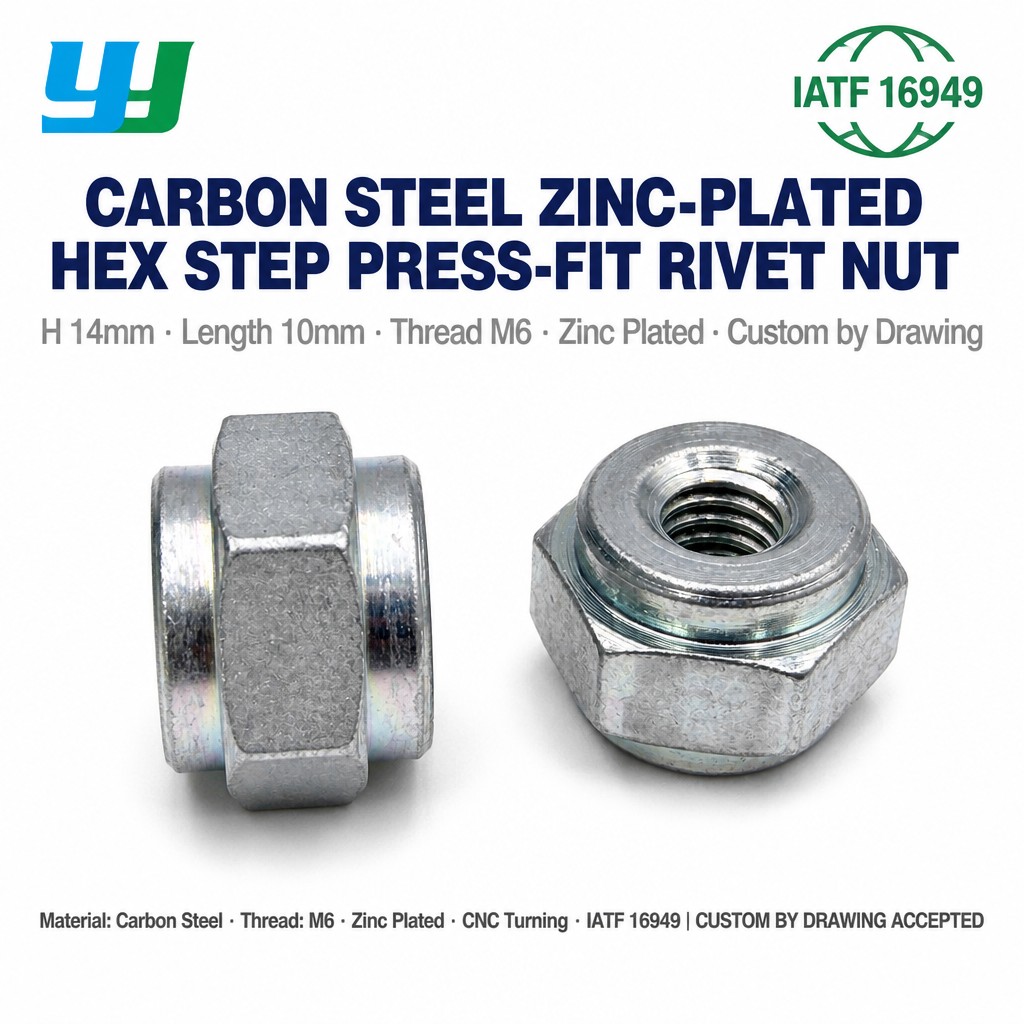

Head Type	Hexagonal body with a stepped section
Price	Please contact us for current pricing.
Customization	Non-standard hex size, length, thread size, and step dimensions are available upon request.

Core Advantages

• Hexagonal body: The hex profile allows the nut to be held with a standard wrench during installation and supports resistance to rotation in the panel.
• Stepped section: The step seats against a matching hole in the sheet and provides a defined contact face during press-fit.
• Anti-rotation geometry: The hex body and step limit turning of the nut after installation in the panel.
• Iron construction: Iron provides mechanical strength for panel fastening applications subject to tightening torque and load.
• Zinc plating: The zinc coating provides corrosion protection on the iron surface for typical indoor and industrial environments.
• M6 internal thread: Suits fasteners used in medium and larger panel and enclosure assemblies.
• Machined body: The machining process holds consistent dimensional tolerance on hex size, length, and thread.

Product Features

• Hexagonal body with a stepped section.
• Internal M6 metric thread produced to standard pitch.
• Machined iron body with consistent dimensional tolerance.
• Hex outer diameter of 14 mm and total length of 10 mm.
• Zinc plating surface treatment.
• Suitable for press-fit installation in sheet metal and panel assemblies.
• Can be produced to customer drawings for non-standard dimensions and step geometry.

Applications

• Sheet metal enclosures and chassis assemblies
• Electronic equipment racks and panels
• Control panels and instrument casings
• Industrial machinery panels
• Automotive interior and structural panels
• Telecommunications equipment
• Prototype and low-volume assemblies
• Applications requiring a threaded connection in sheet metal

FAQ and Solutions

Q1: What is the function of the hexagonal body?
A: The hex profile allows the nut to be held with a standard wrench during installation and supports resistance to rotation in the panel after pressing.

Q2: How is this nut installed?
A: It is installed by pressing the stepped section into a prepared hole in the sheet, with the flange or step seated against the panel surface. Hole size and installation force should match the panel material and thickness.

Q3: What is the purpose of the zinc plating?
A: Zinc plating provides corrosion protection on the iron surface. It suits typical indoor and industrial environments where the base iron would otherwise be subject to oxidation.

Q4: What information is needed for a custom quote?
A: Please provide hex outer diameter, total length, thread size, step dimensions, material, surface treatment, quantity, and any drawing or tolerance requirements.

Precautions

• Confirm the panel hole diameter, step dimensions, and panel thickness before installation.
• Use installation force matched to the panel material to avoid deformation of the panel or the step.
• Avoid excessive tightening torque, which can damage the internal thread or the panel.
• Verify thread compatibility with the mating screw before assembly.
• Store in a dry environment to limit surface oxidation where the plating is damaged.
• For applications with specific corrosion requirements, confirm the plating specification and operating conditions with us.

Customization and Ordering

Non-standard self-clinching nuts and turned fasteners can be produced according to customer drawings or samples. Customization options include hex size, length, thread size, step dimensions, material, surface treatment, and chamfer. Please contact us with your specifications and application details for a quotation.
